Clipper Machine
Semi-automated. Precise. Reliable.

Clipper

Typ 60KM

Special Version for Fragile Products | Vertical Compact

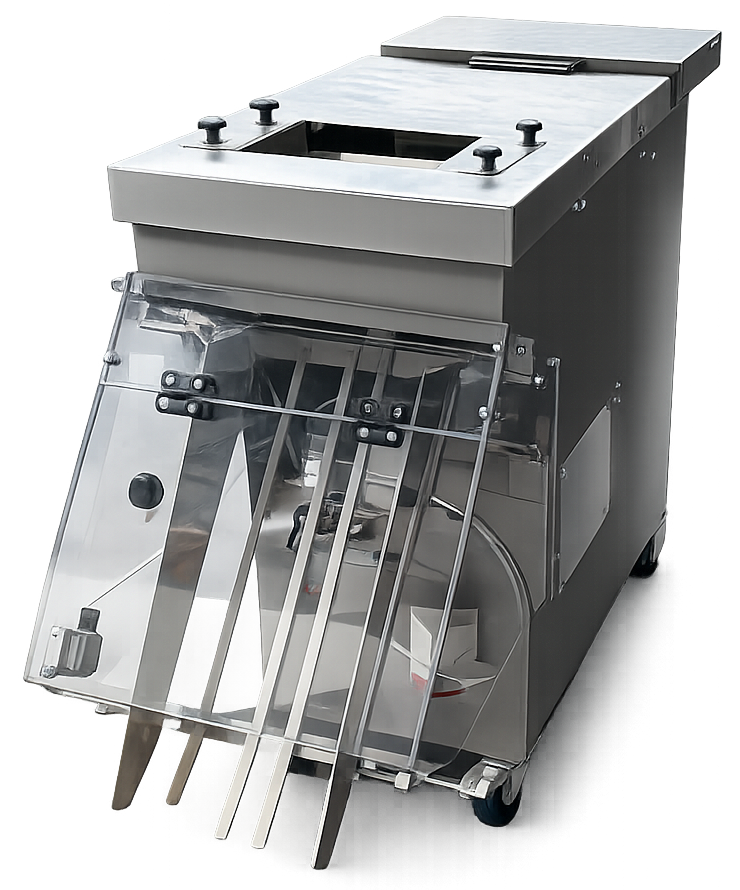

The Kremers semi-automatic clipping machine, model 60KM, is a vertical clipping machine designed for the secure closure of bags using a clip. Its key feature is its compact, space-saving design. The machine is particularly suitable for packaging fragile products in space-restricted environments.

All advantages at a glance

Detecting

_______________

Clipping

_______________

Bags

_______________

Protecting

_______________

Kremers semi-automatic clipping machines 60KM are the ideal solution for fragile products.

Its key feature is its compact, space-saving design. The machine is particularly suitable for packaging fragile products in space-restricted environments.

With our machines, you can present your products at the point of sale in an attractive and compelling way at all times. Kremers semi-automatic clipping machines are a proven solution and are successfully used by leading manufacturers in the food and hardware industries.

Operating Principle

The semi-automatic clipping machine, model 60KM, closes bags precisely and reliably. To ensure especially gentle handling of the product, the bags are first filled manually and then manually placed into the chute. This chute is preset to the respective bag size. A sensor detects the bag and triggers the clipping process. The bag subsequently slides along the guide channel and is ideally transferred onto a discharge conveyor belt or a rotary table.

This completes one clipping cycle, and the next bag can be presented. In this way, continuous and careful handling of the product is ensured – both before and after the closing process – without drop heights or unnecessary mechanical stress.

Areas of Application

Thanks to its design, the Kremers semi-automatic clipping machine, model 60KM, is ideally suited for packaging high-quality and sensitive products. The machines are most commonly used in the food industry, particularly for packaging fragile products.

For many years, these machines have been used to package the following products:

Confectionery
Meringues, chocolate figures, etc.
Bakery
Fine pastries, cookies, wafers, gingerbread, etc.
Snacks
Rice crackers, Japanese snacks, etc.
Hardware
Sensitive and fragile items

Contact us

Technical data

The Clipper 60KM offers:

Technical Data

Function	Parameter
Bag feeding	Manual \| vertical
Bag transfer	Automatic \| vertical
Bag format range[1]	Width 50–200 mm \| Length 100–350 mm
Filling weight	No limitation
Output[2]	35 bags/min
Control system[3]	Siemens S7-1200
Pneumatic system	Festo components
Power supply	400 V / 3 phases + N + PE, 50 Hz, 1 kW
Compressed air requirement	Dry compressed air, min. 5 bar, 3–20 Nm³/h, 100 l/min
Material	Product-contact parts made of stainless steel
Weight[4]	300 kg
Dimensions (L × W × H) in mm[5]	2,000 × 1,000 × 1,700

[1] Other formats can be processed upon request - [2] Output may vary depending on the type of closure, product characteristics, and product feeding - [3] Additional options available - [4] Standard configuration - [5] Standard configuration

Pouch Types

Bag Type	Characteristics
By shape & design
Cross-bottom bags	Folded base, flat for storage, high volume capacity, stable standing
Block-bottom / brick-bottom bags	Box pouch, brick bag – rectangular base for increased volume
Side gusset bags	Integrated side gussets for volume expansion
Flat bags	Two-dimensional, without bottom gusset
By material
Film	PP, PE, AL, PET, multilayer
Cellophane	Cellulose-based film
Aluminum composite bags	Aroma and light barrier
Laminated films	Multilayer combinations of all types
Biodegradable film bags	PLA, compostable materials

Options

No.	Optional Equipment	Function / Benefits
1155	Hang label module	A label made of homogeneous material that is fixed with the clip and enhances the product?s premium appearance.
5696	Hot stamping unit	For clip finishing, date codes, batch numbers, or other information are embossed onto the clip.
