Packaging Machine
Automated. Precise. Reliable.

Zippack

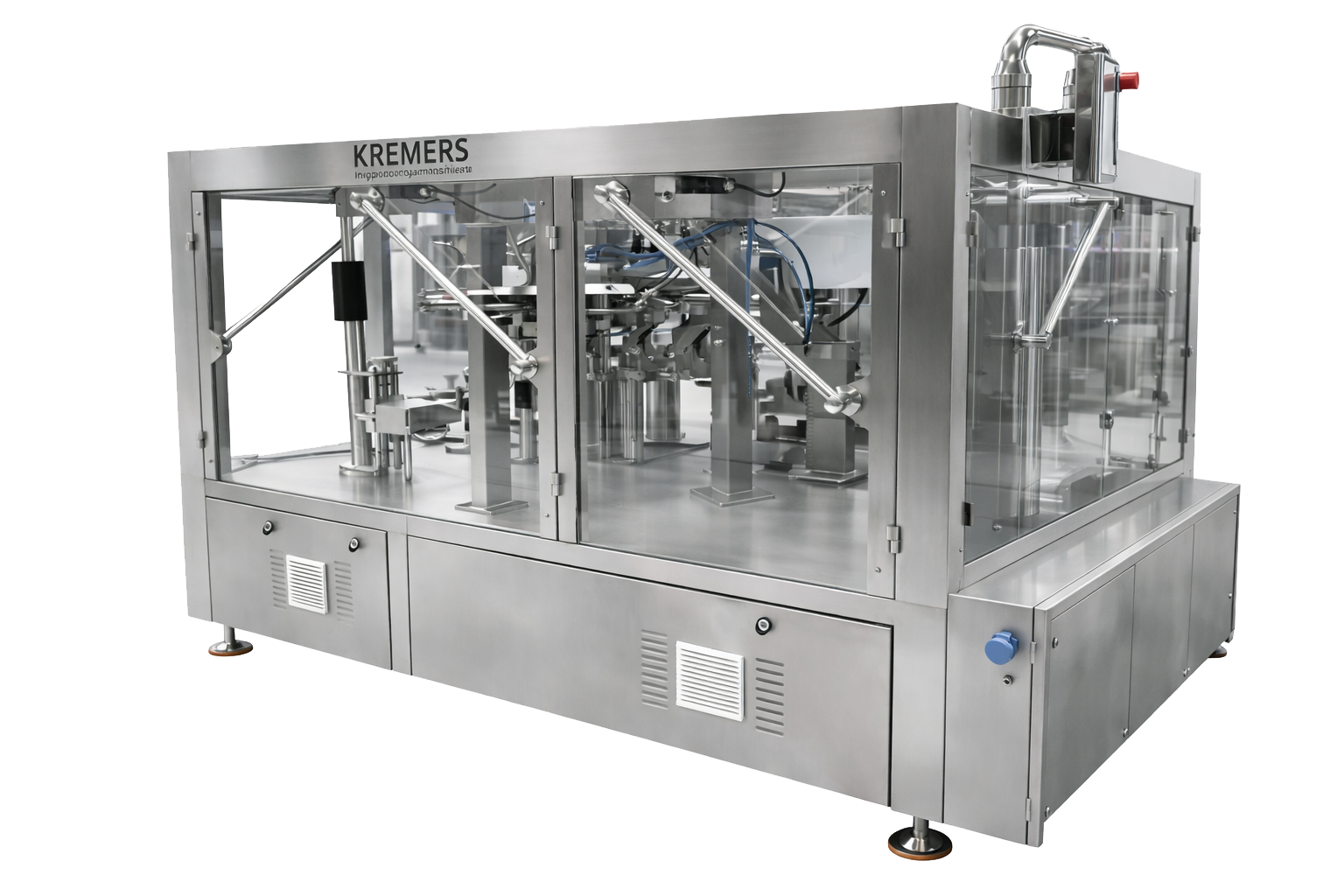

MB8-300S/SW

This model from the Zippack series is designed for medium to large pouch formats. It is our universal model, covering a particularly high-demand size range:

• Pouch width: 150 – 300 mm
• Pouch length: 170 – 420 mm

This makes it the ideal flexible and versatile solution, allowing you to quickly and efficiently adjust your production to the most common pouch sizes.

All advantages at a glance

Opening

_______________

Filling

_______________

Bags

_______________

Sealing

_______________

This model MB8-300S/SW is designed for medium to large pouch formats.

With widths ranging from 150 to 300 mm and lengths from 170 to 420 mm. This model provides a flexible and versatile solution, enabling you to adapt production quickly and efficiently to the most common pouch sizes. is our base model.

More Details of the Zippack Operating/Guiding Priciple and Application Areas

Specific focus

The machine’s design enables quick format changes and highly flexible operation. With only a few simple adjustments, the Zippack machine can be converted to a different bag format in up to 15 minutes and then continue filling and packaging without delay. It can also process bags in a variety of shapes and materials. Further details can be found in the tables below.

Due to its relatively large format, the machine is particularly suitable for packaging larger bags and heavier filling weights. It is used for packaging a wide range of products from the food, dietary supplement, and pet food industries, as well as other products for pet care. Liquids and pasty products can also be processed, along with many other product types.

Special Features

The Zippack MB8-300S as well as the waterproof version Zippack MB8-300SW can be equipped with various dosing systems, including:

Auger fillers for powdery products
Radial multihead weighers with 10 to 32 weighing heads
Linear weighers with 1 to 4 weighing heads
Volumetric fillers
and other systems upon request

As the central component of a packaging line, the Zippack series is compatible with a wide range of feeding and discharge components. This allows you to obtain a cost-effective complete packaging solution from a single source. In addition, we provide comprehensive consultation in advance to determine the optimal configuration for your specific requirements.

Contact us

Available Versions:

Zippack MB8-300S

for dry applications

Zippack MB8-300SW

for wet and dusty applications

Technical Data

Function	Parameter
For standard/dry application	Zippack
	MB8-300S
For wet and dusty applications	Zippack
	MB8-300SW
Pouch pickup	from magazine
Pouch size range [1]	width 150–300
in mm	length 170–420
Fill weight [2]	up to 3,000 g
Performance pouch/min [3]	up to 50
Control panel [4]	Siemens S7-1200, color touch interface
Production programs [5]	10
Pneumatic system	Festo
Vacuum pump	Becker Technology
Power requirements	401 V / 3 phase + N + PE, 50 Hz, 3 kW
Compressed air requirement	Dry compressed air, 5 bar, 3 – 20 Nm³/h, 500 l/min
Material	Product-contact parts made of stainless steel
Weight [6]	1,800 kg
Dimensions [7] in mm (L x B x H)	3,070 x 2,200 x 1,700

Pouch Types

Pouch Type	Characteristics
By Shape & Design
Doypack / Stand-Up Pouch	Classic design with oval or round bottom
Block-Bottom Pouch	Box Pouch / Brick Bag with rectangular bottom for higher volume
Flat Pouch	Two-dimensional, without bottom gusset
Inner Side-Gusset Pouch	With integrated inner (side) gusset for volume expansion
Vacuum Pouch	Smooth or textured surface for extended durability
Special Shapes	Custom designs available
By Closure Type
Single Zipper	Standard zipper
Double Zipper	For enhanced sealing tightness
Hook-and-Loop Fastener	For pouch reclosability
Heat Seal / Weld Seam	Single or double zipper options
By Material
Film	PP, PE, PET, multilayer structures
Paper Pouch	With or without film lamination
Aluminum Composite Pouch	Aroma and light protection
Biodegradable Film Pouch	PLA, compostable materials
With Special Features
Pouch with Valve	For coffee or fermented products
Transparent Window	For product visibility (transparent window)
Euro Hole / Hanging Slot	Suitable for retail presentation
Die-Cut Handle	For convenient carrying
Spout	For convenient carrying

Options

No:	Optional Equipment	Function \| Your Benefits
4257	Magazine extension by 1 m	For a continuous workflow with high output – without interruptions.
5994	Additional Zippack opening system (air inflation)	Inflation device for reliably opening even hard-to-open bags, including air tank with quick-release valve.
5972	Dust extraction during filling via double-walled funnel	Time-saving filling with simultaneous dust extraction of product particles. This keeps the machine body, electronics, mechanics, and packaging free from dust residues.
5978	Dust extraction directly at the bag with subsequent preparation for reliable sealing (extraction at the filling point)	The suction unit removes the dust that develops during bag filling directly at the bag opening. This keeps the machine body, electronics, mechanics, and packaging free from dust residues. The bag is then shaped to ensure reliable sealing.
5919	Device for removing residual air from the bag (air expeller)	Before closing or sealing, the air is removed from the bag. The result is compact packaging without air pockets – enabling space-saving further processing, efficient transport, and optimal placement at retail.
5912	Nitrogen flushing	Nitrogen flushing system for consistent quality, longer shelf life, and optimal product protection.
1143	Pneumatic vibrator	Used during and after bag filling for compaction, elimination of air pockets, and optimal volume utilization.
59077	Euro hole punching	The Euro hole is punched directly after sealing the bag. This ensures that the bag has been properly sealed beforehand and that your product is optimally protected.
59010	Support base for bags with higher weights	Height-adjustable device for supporting bags with heavy weights – prevents tearing of the packaging.
59004	Spoon dispenser	Automatic and hygienic spoon insertion directly into the bag.
5942m	Seam cleaning device type Tornado	Mechanical cleaning of the film in the seam area before thermal sealing – for clean, tight, and reliable seams.
5942	Seam cleaning device type Tornado	Pneumatic cleaning of the film in the seam area before thermal sealing – for clean, tight, and reliable seams.
59013	Discharge of empty bags	Automatic removal of unfilled bags.
8042	Detection of overfilled bags	Precise detection of overfilled bags using a highly sensitive photoelectric sensor.
6.40	Food-grade oils and lubricants	Use of food-grade oils and lubricants, along with instructions to minimize the risk of product contamination.
0904	Inkjet printer module for marking/coding (Videojet type 1580)	For marking/coding of bags – such as with best-before dates, batch numbers, or other important information – we use systems from well-known manufacturers such as Videojet (Type 1580), Domino, Markem, and others as per customer requirements.
5928	Bag fixer for precise marking/coding (inkjet holder with adjustable side guide)	The system aligns the bag precisely so that the coder/printer can apply markings accurately and reliably.
4404	Cover for protection against contamination (Makrolon cover)	The transparent Makrolon cover prevents dust or product residues from the feed or dosing unit from falling and interfering with the bag filling process.
1140	Buffer table / waiting station for finished packed bags (round table)	Rotary table Ø 1,200 mm, concave, made of stainless steel. The filled bags rest here safely and within easy reach until they are transferred into transport packaging. The rotation speed of the unit is continuously adjustable.
1172	Scale frame for linear weigher	Stable frame for secure installation of the linear dosing weigher above the Zippack machine. Can be individually adapted to your system and spatial conditions.
8.45	Scale frame type C for radial multihead weigher	Stable frame for secure installation of the radial multihead weigher above the Zippack machine. Can be individually adapted to your system and spatial conditions.
9.10	Control unit	For machine operation, we use a Siemens S7-1200 control system as standard. On request, we can also offer alternative options that are fully compatible with your existing system.
8893	Extension of work programs	Maximum flexibility through management of up to 100 work programs with increased memory capacity.
59014	Network capability	Network integration of the machines for monitoring, control, and supervision of production.
5956	Remote maintenance module	Cost- and time-saving method for diagnosis and troubleshooting via remote access.
